DIN 939 Stud Bolts

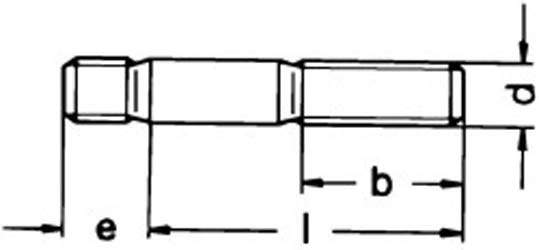

DIN 939 Dimensions for Stud Bolts with Metal End Length = 1.25D
| d | e | b up to 125 | b up to 200 | b over 200 |
|---|---|---|---|---|
| M6 | 7.5 | 18 | 24 | - |
| M8 | 10 | 22 | 28 | - |
| M10 | 12 | 26 | 32 | 45 |
| M12 | 15 | 30 | 36 | 49 |
| M16 | 20 | 38 | 44 | 57 |
| M20 | 25 | 46 | 52 | 65 |
| d | e | b up to 125 | b up to 200 | b over 200 |
|---|---|---|---|---|
| M6 | 7.5 | 18 | 24 | - |
| M8 | 10 | 22 | 28 | - |
| M10 | 12 | 26 | 32 | 45 |
| M12 | 15 | 30 | 36 | 49 |
| M16 | 20 | 38 | 44 | 57 |
| M20 | 25 | 46 | 52 | 65 |
